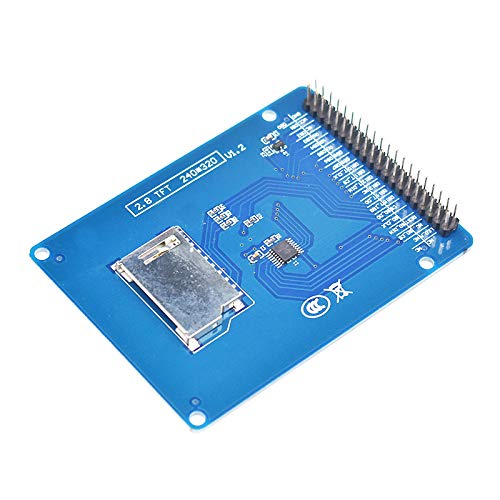

2 8inch 34P TFT LCD 240x320 Screen Touch Screen Monitor with ILI9341 controller Touch

About this item

• LCD size: 2.8 inches
• Driver IC: ili9341
• Color depth: 16 bits (65K colors)
• Touch screen type: resistive, glass touch screen
• module size: 51mm * 82.6mm
• New 2.8-inch TFT touch screen module This module is a general TFTLCD module, which uses a new LCD module and the original touch screen 1,1320 × 240 resolution 2, 16 bit color (65000 colors) display support. 3. High brightness backlight, good backlight brightness and low power consumption. 4. High quality touch, high sensitivity and high linearity. 5, driven by ili9341 6. General 34pin interface Detailed parameters of 2.8 inch LCD module: 1. LCD size: 2.8 inches 2. Display area: 57.6mm * 47.2mm 3. Driver IC: ili9341 4. Resolution: 320 * 240 (RGB) 5. Color depth: 16 bits (65K colors) 6. Working voltage: 3.3V or 5V 7. Backlight voltage: 3.3V 8. Touch screen type: resistive, glass touch screen 9. Interface mode: 16 bit (default) / 8-bit configurable 10, module size: 51mm * 82.6mm LCD size: 2.8 inches; Driver IC: ili9341; Color depth: 16 bits (65K colors); Touch screen type: resistive, glass touch screen; module size: 51mm * 82.6mm Rated 5.0 out of 5.
