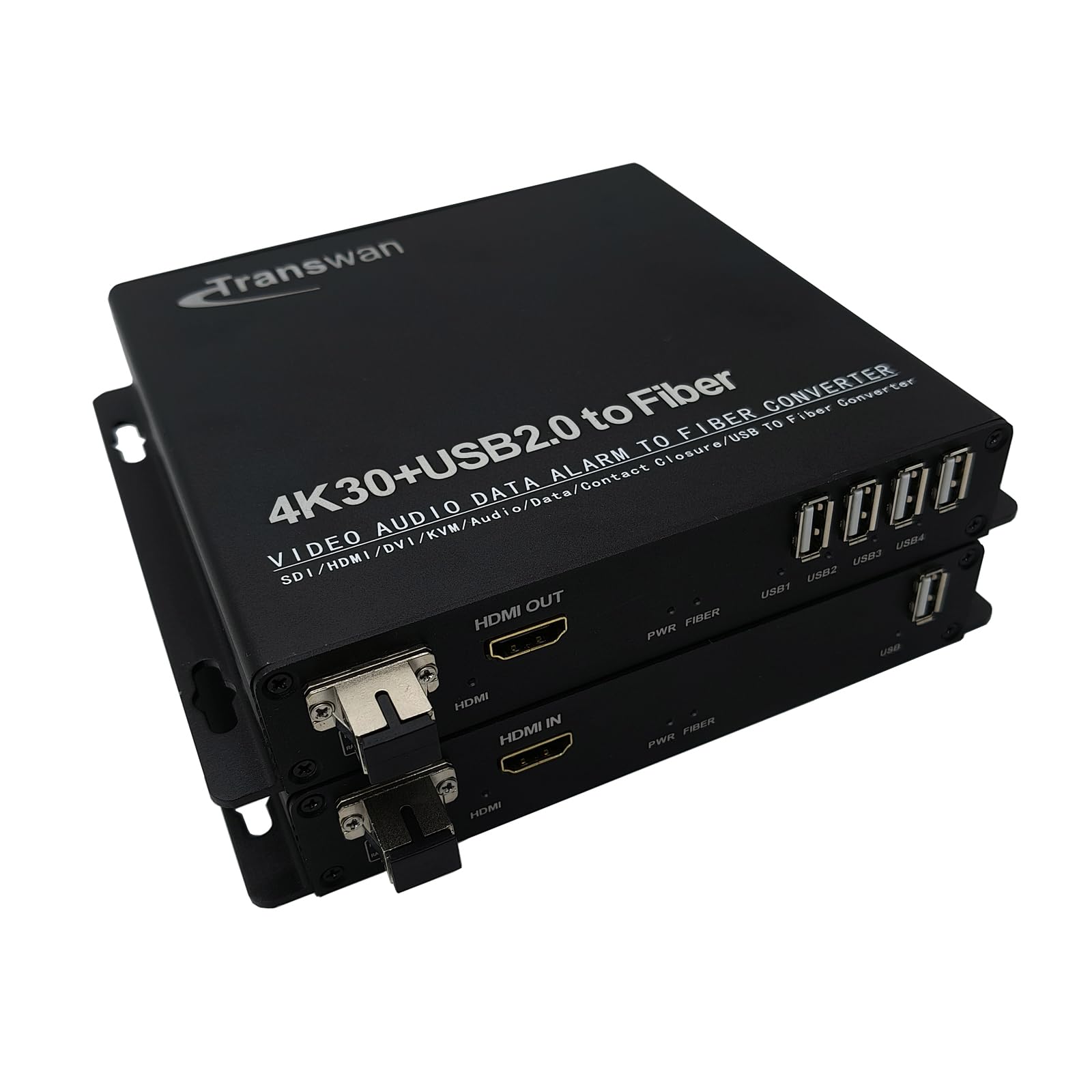

4K HDMI Over 1 Fiber Extender with 4 Ports USB 2 0 Hub 4K HDMI 4K 30Hz to

About this item

• Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p (4K @ 30Hz)
• Support USB 2.0 devices, The receiver has 4 USB 2.0 ports to connect
• Max extension distance 5 Kilometers (16400 FT) over 1 Single-mode Fiber
• Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total
• HDCP compliance.
• Performance: Compliance:HDMI v1.4, HDCP v1.4, DVI v1.0 HDMI Input / HDMI Output:19-pin female HDMI connectors HDMI Input / HDMI Output:19-pin female HDMI connectors Optical Input / Output:1 x SC optical connectors Mechanical: Construction:Extruded Aluminum enclosure with black anodized finish Dimensions: 175mm×154mm×30mm Weight:1.5kg per pair Environmental: Operating Temperature:0° to +50° C Storage Temperature:-20° to +70° C Humidity (storage / operating):10% to 90% (non-condensing) Power Requirements: Power Source:Both Tx and Rx units must be powered using the supplied external AC power adapters External AC Power Adapter: Input : 100~240VAC / 50-60Hz, 0.5A Output : 5VDC, 4.0A Maximum Power Consumption: TX Unit : 5 watts RX Unit : 20 watts Application Perfect for extended use of HDTV, LCD monitors, digital projectors, plasma TV's and other equipment requiring HDMI to Fiber conversion. Aplication of Extending the touch Screen 1). Video and Audio Transmission： 4KP30 Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p (4K @ 30Hz); Support USB 2.0 devices, The receiver has 4 USB 2.0 ports to connect; Max extension distance 5 Kilometers (16400 FT) over 1 Single-mode Fiber;
