SHUKEFER

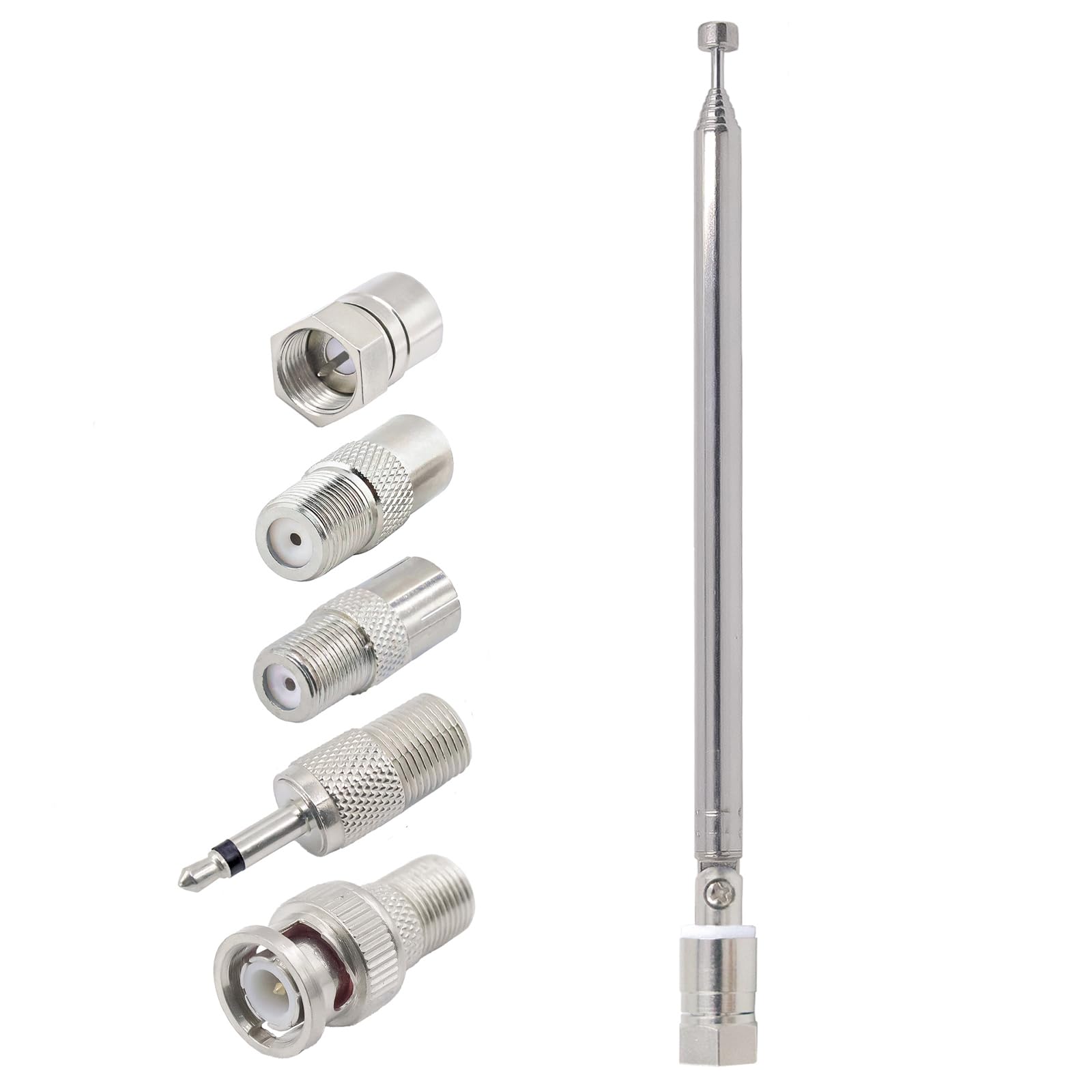

FM Telescopic Radio Antenna Kit F Male Connector Telescopic Antenna Replacement 75 Ohm 7 Sections 30 12Inch for

5.0(2)
$7.09$48.15

84+ bought in the past month

About this item

  • Connector Type: F male; Body material: Stainless steel; Connector material: Copper; Adapter port material: Zinc alloy; Product surface material: Electroplated nickel plating; Antenna diameter: 7mm; Section numbers:7; Antenna Length: About 76.5cm/30.12inch(extended),16.8cm/6.61inch(unfolded)
  • Impedance: 75 ohm; Working voltage: 335V max (effective value) ; Withstand voltage: 1000V rms (minimum value at sea level); Inner conductor contact resistance: ≤3 mΩ; Outer conductor contact resistance: ≤2 mΩ; Insulation resistance: ≥5000 MΩ; Insertion loss: ≤0.15 dB/6GHz
  • Application: AM FM radio AV video stereo receiver.
  • Note: The frequency will be different as the number of antenna sections is different. The longer the length is, the better the signal will be
  • Package: 1 x F type telescopic antenna 7 sections,1 x F female to 3.5mm male adapter,1 x F female to TV male adapter,1 x F female to TV female adapter,1 x F female to BNC male adapter(Net Weight:44g)

Key details

Antenna
Radio
Brand
SHUKEFER
Color
Silver
Number of Channels
1
Impedance
75 Ohms

Dimensions and fit

dimensions
4.72 x 0.39 x 0.39 inches
weight
1.55 ounces

Item information

Manufacturer
SHUKEFER
Number of Items
1
0
[object Object]
Highlights

About this item

  • Connector Type: F male; Body material: Stainless steel; Connector material: Copper; Adapter port material: Zinc alloy; Product surface material: Electroplated nickel plating; Antenna diameter: 7mm; Section numbers:7; Antenna Length: About 76.5cm/30.12inch(extended),16.8cm/6.61inch(unfolded)
  • Impedance: 75 ohm; Working voltage: 335V max (effective value) ; Withstand voltage: 1000V rms (minimum value at sea level); Inner conductor contact resistance: ≤3 mΩ; Outer conductor contact resistance: ≤2 mΩ; Insulation resistance: ≥5000 MΩ; Insertion loss: ≤0.15 dB/6GHz
  • Application: AM FM radio AV video stereo receiver.
  • Note: The frequency will be different as the number of antenna sections is different. The longer the length is, the better the signal will be
  • Package: 1 x F type telescopic antenna 7 sections,1 x F female to 3.5mm male adapter,1 x F female to TV male adapter,1 x F female to TV female adapter,1 x F female to BNC male adapter(Net Weight:44g)
