XYWHPGV 10kg Weighing Electronic Balance Wired Load Cell Weighing Sensor 1pack for Kitchen Scale human Body Bathroom Scale

About this item

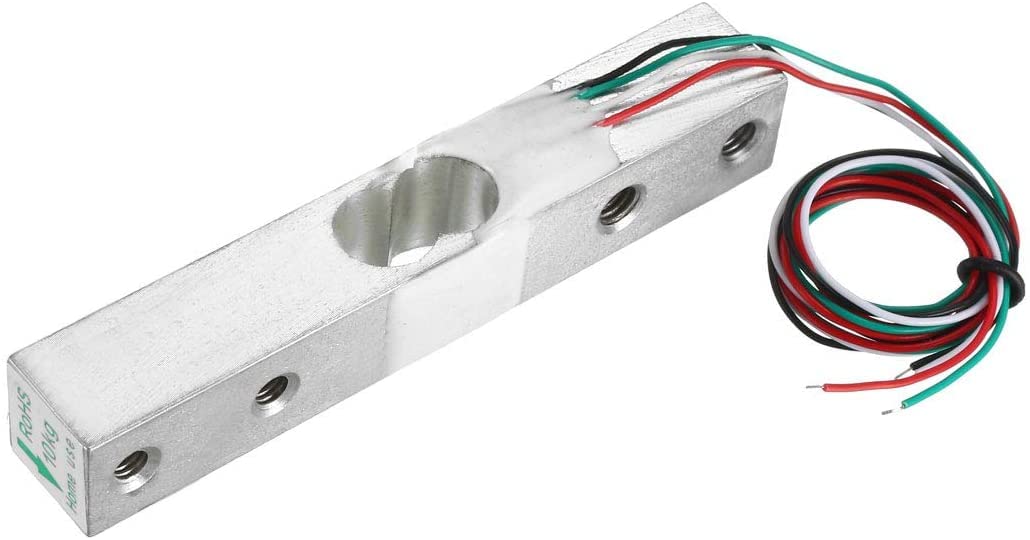

• 1.10kg range silver tone aluminum wired weighing load cell, high accuracy, simple structure, easy installation.
• 2. The surface is anodized to make the product more and durable.Secondly, the product is protected by silica gel, which can protect against corrosion, moisture and aging.
• 3. Widely used for electronic scales and balance material scales, jewelry scales and control system.
• 4. Wire connection: Red(EXC+), Black(EXC-) ,Green(SEN+), White(SEN-)；Sensitivity(mV/V):1+/-0.15，Error:+/-0.05 F.S.
• 5. Pack with 1 pieces weighing load cell, Load Cell Size: 80 x 12.7 x 12.7mm (L*W*T)
• Notice: The red line connects power positive, and black connects power negative .The green connects signal positive, and white connects signal negative . One end of the sensor through the screw holes fixed and the other end to keep floating. Applied according to label directions direction of gravity. This item is used widely in hopper scales, platform scales, platform balance, belt scales and other electronic weighing devices. 1.10kg range silver tone aluminum wired weighing load cell, high accuracy, simple structure, easy installation.; 2. The surface is anodized to make the product more and durable.Secondly, the product is protected by silica gel, which can protect against corrosion, moisture and aging.; 3. Widely used for electronic scales and balance material scales, jewelry scales and control system.; 4. Wire connection: Red(EXC+), Black(EXC-) ,Green(SEN+), White(SEN-)；Sensitivity(mV/V):1+/-0.15，Error:+/-0.05 F.S.; 5. Pack with 1 pieces weighing load cell, Load Cell Size: 80 x 12.7 x 12.7mm (L*W*T) Choose your platform/edition, then jump in—story, missions, and extras depend on the version. Rated 5.0 out of 5.
